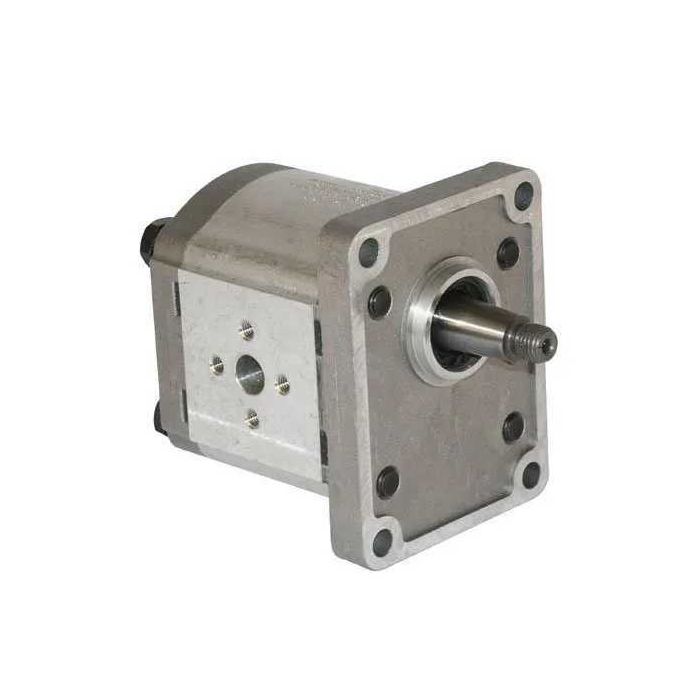

Hüdromootor LH/RH GR2 6,61cm³ 250bar
CASAPPA
Pöörlemissuund Vasak / Parem
Flange type norm: European
Number of mounting holes: 4
Shaft type: Tapered
Shaft cone size code: 1:8
Displacement: 6.61 cm³/rev
Max. continous working pressure: 250 BAR
Max rotation speed: 4000 r/min
Min rotation speed: 600 r/min
Main port size code: 1G08
Pressure port size code: 1G08
Housing length: 95.5 mm
Housing material: Aluminium
| Paki kaal (kg) | 3.464000 |
|---|---|
| Ei sobi pakiautomaati | Jah |
| Pakendi kõrgus (m) | 0.098 |
| Pakendi sügavus (m) | 0.156 |
| Bränd | Casappa |
| Ühik | tk |
| Pakendi laius (m) | 0.123 |
