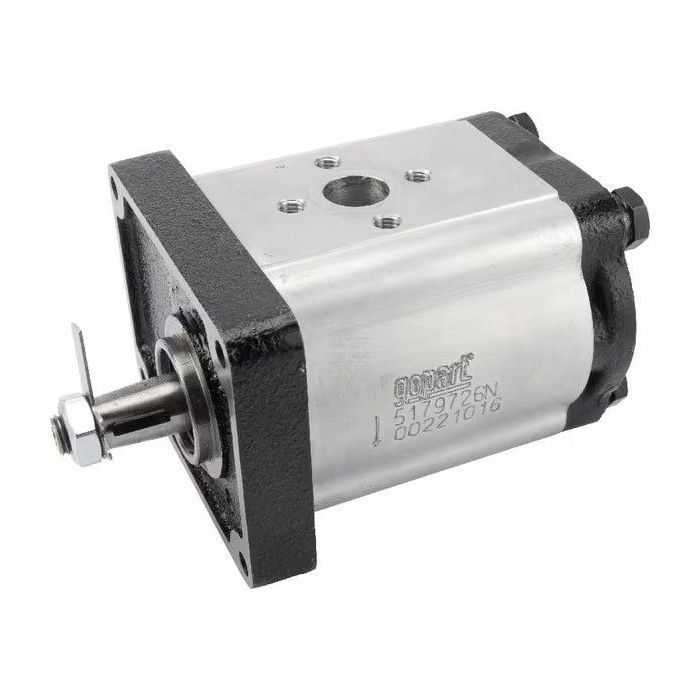

Hüdropump 19 cm³/p 5179726
Brand gopart
Product details Kramp and gopart OE gear pumps
Displacement 19 cm³/rev
Flange type norm European
Number of mounting holes 4
Shaft type Tapered
Shaft thread diameter M12
Shaft thread pitch 1.50 mm
Shaft cone size code 01:08
Sealing type Standard
Max. continous working pressure 170 BAR
Max intermittend working pressure 210 BAR
Max pressure peak 230 BAR
Max rotation speed 2750 r/min
Min rotation speed 650 r/min
Rotation direction Clockwise (CW)
Main port size code 2G12
Pressure port size code 1GB12
Port position Side
Housing length 134.5 mm
Connection port to flange distance 59 mm
Pressure port bolts circle diameter 30 mm
Suction port bolts circle diameter 40 mm
| Kaal | 4.252000 |
|---|---|
| Ei sobi pakiautomaati | Jah |
| Kõrgus | 0.12 |
| Sügavus | 0.183 |
| Bränd | gopart |
| Ühik | tk |
| Laius | 0.14 |
