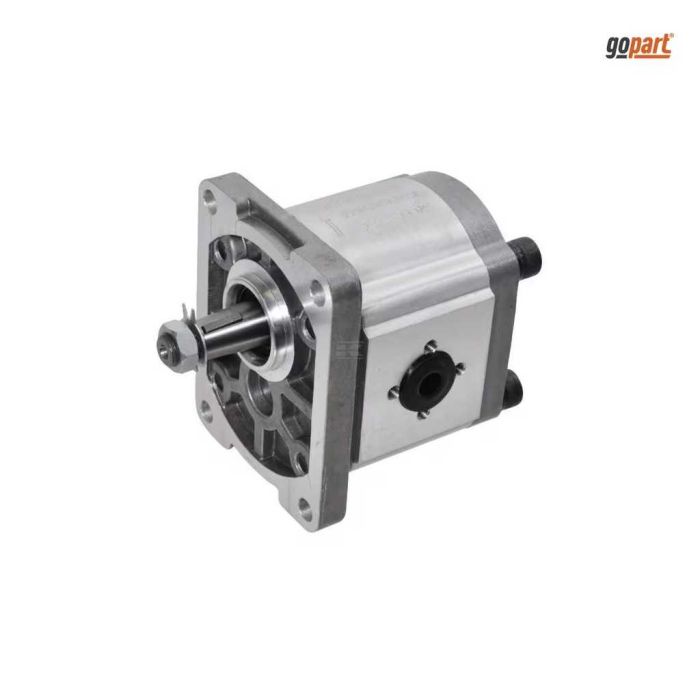

Hüdropump RH GR-2/R 230bar 14cm³/p

Gopart Pöörlemissuund-PAREM Flange type norm - European Flange code - E2 Number of mounting holes - 4 Shaft type - Tapered 1:8 Shaft type code - 82 Shaft diameter - 16.65 mm Shaft thread type - Metric Shaft thread diameter - M12 Shaft thread pitch - 1.50 mm Shaft cone size code - 1:8 Displacement - 14 cm³/rev Sealing type - Standard Max. continous working pressure - 180 BAR Max pressure peak - 230 BAR Max rotation speed - 3300 r/min Prefered rotation direction - Clockwise (CW) Mounting holes horizontal distance - 71.5 mm Mounting holes vertical distance - 96.2 mm Main port size code - 2G12 Pressure port size code - 1G08 Port position - Side Housing length - 111 mm Housing material - Aluminium Flange and back cover material - Aluminium B, Connection port to flange distance - 51 mm Pressure port bolts circle diameter - 30 mm D, Suction port bolts circle diameter - 40 mm Mounting diameter - 36.5 mm Pump group code - 2
