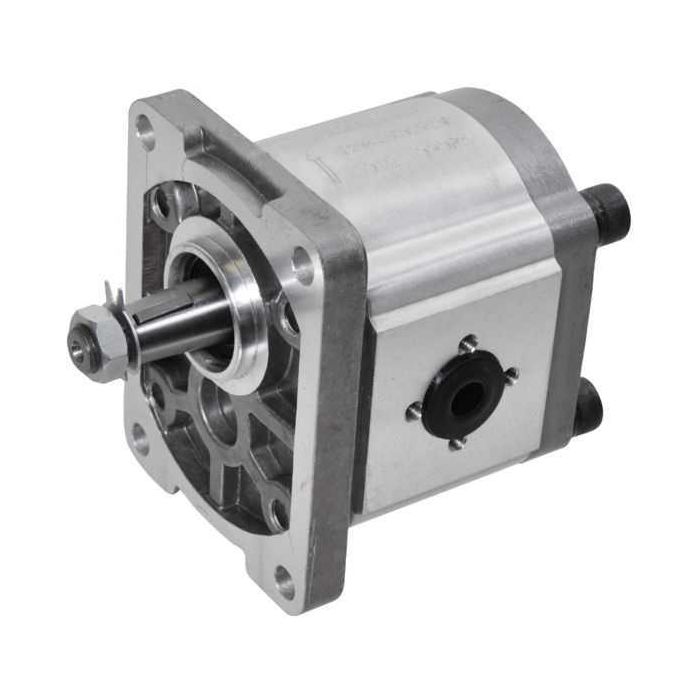

Hüdropump RH GR-2/R 230bar 6,0cm³/p
Pöörlemissuund: PAREM
A : 46.0
B : 96.3
Diameter suction connection : 30 [mm]
Elbow flange pressure : B413-FG1/2X30
Elbow flange suction : B413-FG1/2X30 (30-G1/2")
Max continous working pressure : 250 [bar]
Max continuous rotation : 4000 [RPM]
Pump displacement : 6,00 [cm3/rot]
Rotation direction : right
Body material : aluminium
Covers material : aluminium
Pomptype : 2
Front cover : E (71,5 x 96,2 mm)
Number of mounting holes : 4
Lock diameter : 36.5 [mm]
Shaft type : conical 1:8 (type 10)
Shaft Ø : 14,65 [mm]
| Paki kaal (kg) | 2.500000 |
|---|---|
| Ei sobi pakiautomaati | Jah |
| Pakendi kõrgus (m) | 0.099 |
| Pakendi sügavus (m) | 0.155 |
| Bränd | gopart |
| Ühik | tk |
| Pakendi laius (m) | 0.123 |
