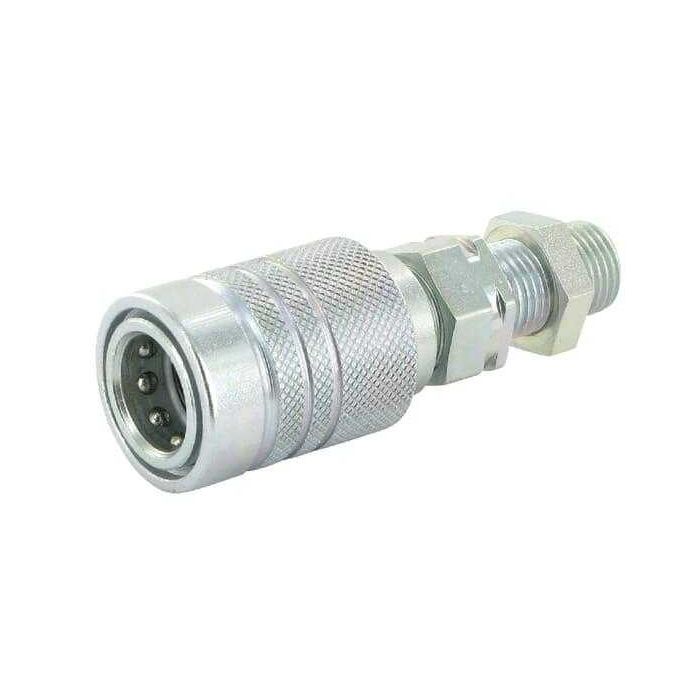

Hüdrovoolik kiirühendus 1/2-M22x1,5-15L pesa

Application range: For universal use. Agricultural machines. Municipal services technology. Mineral oil-based fluids. Properties: Agricultural standard coupling. Push-pull principle. Breakaway function. Locks on both sides. Axial actuation of locking sleeve in both directions (double acting). Application range: For universal use. Agricultural machines. Municipal services technology. Mineral oil-based fluids Properties: Agricultural standard coupling. Push-pull principle. Breakaway fu. Shape: Straight Connection no 1 type: Quick coupling Connection no 1 type - male/female: Female Connection no 1 diameter: 20.6 mm Size code: BG 3 Connection 2, type: Thread Connection 2, type - male/female: Male Connection 2, diameter: 15 mm Connection 2, thread diameter: M22 Connection 2, thread pitch: 1.50 mm Connection 2, thread type: Metric Connectable under pressure: No ISO standard: 7241-1-A Outside diameter: 38 mm Total length: 86 mm Material: Steel Surface treatment: White passivated Working pressure: 250 BAR Max working temperature: 100 °C Min. working temperature: -30 °C Seal material: Nitrile rubber [NBR]/Teflon (PTFE)
